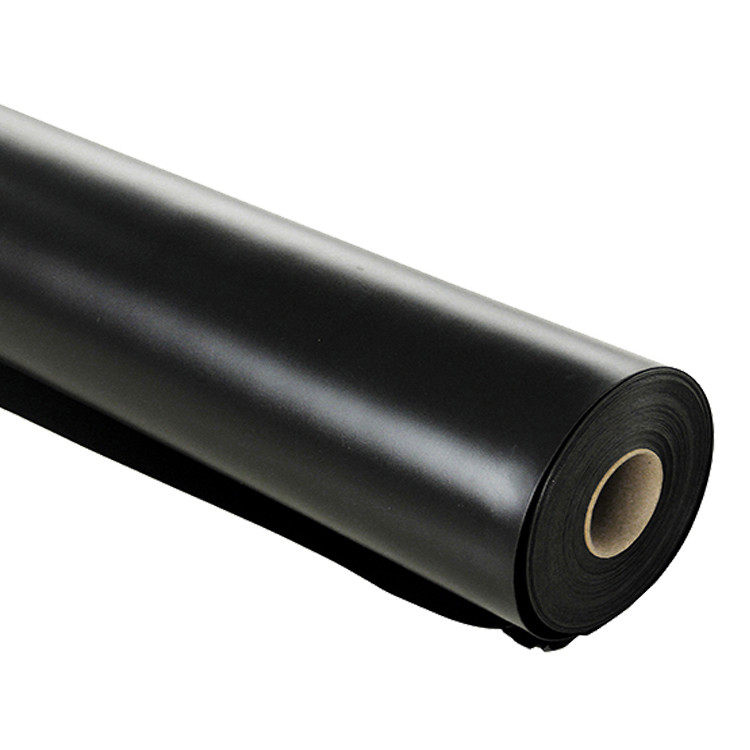

0.1mm Lightweight IXPE Sheet Black White Color Smooth Surface Soft
Foam
IXPE foam is physical cross-linked and close cell structure with
lightweight,eco-friendly,good mechanical performance.The thickness
could be thinnest as 0.1mm.The material could be applied into PE
foam tape, Medical, Electronics,Flooring underlayment,
Automotice,Gaskets/sealing,HVAC insulation, Construction etc.
Specifications:
| IXPE Foam Physical Properties |
| Test Item | 5 Times | 8 Times | 10 Times | 15 Times | 20 Times | 25 Times | 30 Times | 35 Times |
| Density(kg/m³) | 200±30 | 125±15 | 100±10 | 66.7±8 | 50±6 | 40±4 | 33.3±3 | 28.6±2 |
| Shore Hardness(°) | ＞3mm thick | 60-70 | 50-60 | 45-50 | 35-45 | 30-35 | 25-30 | 18-25 | 13-18 |
| ≤3mm thick | 55-65 | 45-55 | 35-45 | 25-35 | 20-25 | 15-20 |
| Tensile Strength(Mpa) | TD | ≥1.3 | ≥0.9 | ≥0.7 | ≥0.5 | ≥0.35 | ≥0.3 | ≥0.2 | ≥0.15 |
| MD | ≥1.5 | ≥1.0 | ≥0.8 | ≥0.6 | ≥0.38 | ≥0.35 | ≥2.5 | ≥0.2 |
| Elogation(%) | TD | ≥200 | ≥150 | ≥130 | ≥130 | ≥130 | ≥110 | ≥110 | ≥110 |
| MD | ≥220 | ≥170 | ≥150 | ≥150 | ≥150 | ≥120 | ≥120 | ≥110 |
| Tearing Strength(KN/m) | TD | ≥9 | ≥8 | ≥6 | ≥4 | ≥2.5 | ≥2 | ≥1.5 | ≥1.3 |
| MD | ≥9 | ≥8 | ≥6 | ≥4 | ≥2.5 | ≥2 | ≥1.2 | ≥1.2 |
| Compressed Distortions(% 23℃+2℃6,22h) | ≤2 | ≤3 | ≤5 | ≤7 | ≤8 | ≤9 | ≤10 | ≤11 |
| Dimension Change | TD | ≤-4 | ≤-4 | ≤-4 | ≤-4 | ≤-6 | ≤-6 | ≤-6 | ≤-6 |
| (% 70℃+2℃,22h) | MD | ≤-6 | ≤-6 | ≤-6 | ≤-6 | ≤-8 | ≤-8 | ≤-8 | ≤-8 |
| Water Absorbtion (g/cm2)23℃+2℃,24h | ≤0.02 | ≤0.02 | ≤0.03 | ≤0.03 | ≤0.04 | ≤0.04 | ≤0.05 | ≤0.05 |
| Thermal Conductivity(w/mk) | ≤0.095 | ≤0.084 | ≤0.073 | ≤0.065 | ≤0.055 | ≤0.045 | ≤0.040 | ≤0.040 |
The difference between XPE foam and IXPE foam:
| IXPE foam | XPE foam |
|---|
Full name | Physical crosslinked polyethylene foam or Irradiation crosslinked polyethylene foam | Chemically crosslinked polyethylene foam |
|---|
Production | Material PE--Extrusion--Vertical foaming--IXPE foam | Material PE--Extrusion--Horizontal foaming--XPE foam |
|---|
Difference | Compared with XPE foam, IXPE foam has more delicate cellular,more
smooth and flat surface,more excellent mechanical performance |
|---|
Color | Black ,White,Grey and customization |
|---|
Density | 25-300kg/m3 |
|---|
Thickness | 3-15mm(single layer) to 100mm(multilayer) | 0.5-12mm(single layer) to 100mm(multilayer) |
|---|
Material | LDPE(Low density polyethylene) |
|---|
Length | No limited |
|---|
Width | 300-1800mm |
|---|
Supplied form | Foam roll, Foam sheet, Foam block, ESD PE foam, PE foam with
adhesive, PE foam with aluminum foil |
|---|
Optional service | Laminating, Cutting and Adhesive coated |
|---|
Application | HVAC system&Airconditioning,Packaging, Building&construction,Sports&Leisure, | Foam tape,Floor underlayment,Medical,Sports&Leisure |
|---|
Applications:
Insulations:
Heating and cooling machines, tanks, reservoirs;central air
conditioning,
Vehicle:
Automotive interior decoration, ceiling, dashboard,cover the old
boards, coolers, flooring
Culture&Sports:
School teaching materials, children's toys, sporting a variety of
mattress,surfboard, swimming with life jackets, float and
cushioning materials;kitchen sink mat, bath cap and slippers, hats
FAQ:
Q1:How can I place an order?
1)Tell us the size details and quantity you want to order.
2)We will make PI for you.
3)Checking PI and confirm it for us, we will arrange the production
ASAP when the prepayment received.
4)We will take photos for you to confirm and then deliver the goods
soon after the balance.
5)Send the Customs Clearance Documents or tracking number to you
and track the goods for you until you get it.
Q2:What applications could the XPE and IXPE foam applied for?
A lot. Automotive NVH; PE foam tape; Building insulation; HVAC
insulation; Electronic; Sports protection; Flooring underlay;etc.
Q3:Do you have fire retardant foam?
Yes, we have. UL94 HF-1; FMVSS302/ISO3795; BS476 Class 0
