Self Adhesive XPE Polyethylene Foam Insulation Pipe For HVAC System
Building

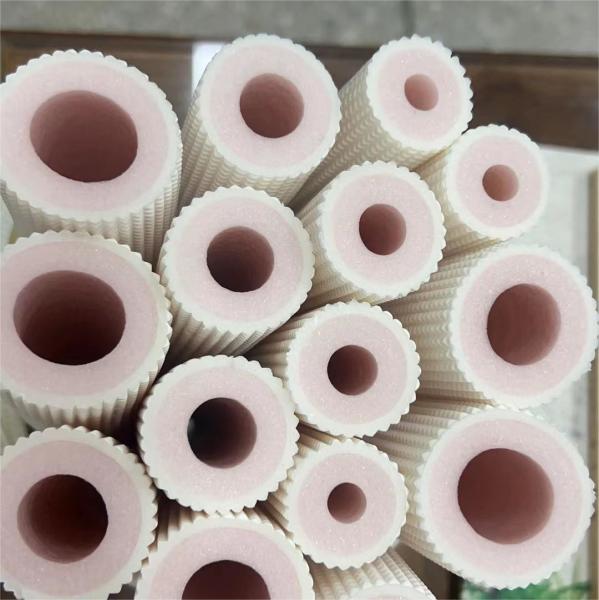

PE Composite Insulation Tubes Series Used For Air-Conditioners
Our embossed PE insulation sleeve tube has three-layer structure:
Outer layer embossing process is smooth, beautiful,
anti-aging,anti-ultraviolet; Inner layer is independent foam with
bubble structure, unique formula, good insulation resistance,
resistance tohigh temperature of 95 degree without deformation; The
insulation sleeve tube is twin-tube combination and easy
separation,easy installation, beautiful appearance. Installed with
copper tube or Cu-Al tube it is the best choice for connecting
indoor andoutdoor of air conditioners. This sleeve tube is made of
polyethylene(PE) closed-cell foam, the tube has no interface cracks
with small water absorption and good insulation properties, and
does not corrode steel tube and copper tube. The surface of sleeve
tube can be fixed with a layer of embossed Pe sheet. This sleeve
tubes can be widely used for air conditioning insulation pipe and
protective sleeve of metalpipes.
Dimension for twin-tube:
| Wall Thickness(mm) |
| No. | Type of Air-conditioers | ID of twin-tubes | 8mm | 9mm | 10mm | 12mm | 15mm |
| 1 | 1 P | Φ9*Φ12mm | 1 P*8mm | 1 P*9mm | 1 P*10mm | 1 P*12mm | 1 P*15mm |
| 2 | 1.5 P | Φ9*Φ12mm | 1.5P*8 | 1.5P*9 | 1.5P*10 | 1.5P*12 | 1.5P*15 |
| 3 | 2.5 P | Φ9*Φ19mm | 2.5P*8 | 2.5P*9 | 2.5P*10 | 2.5P*12 | 2.5P*15 |
| 4 | 3 P | Φ12*Φ19mm | 3 P*8 | 3 P*9 | 3 P*10 | 3 P*12 | 3 P*15 |
| 5 | 4 P | Φ12*Φ22mm | 4 P*8 | 4 P*9 | 4 P*10 | 4 P*12 | 4 P*15 |
| 6 | 5 P | Φ9*Φ12mm | 5 P*8 | 5 P*9 | 5 P*10 | 5 P*12 | 5 P*15 |
Dimension for single-tube:
| Wall Thickness(mm) |
| No. | Type of Air-conditioers | ID of twin-tubes | 8mm | 9mm | 10mm | 12mm | 15mm |
| 1 | 1 P | Φ9*Φ12mm | 1 P*8mm | 1 P*9mm | 1 P*10mm | 1 P*12mm | 1 P*15mm |
| 2 | 1.5 P | Φ9*Φ15mm | 1.5P*8 | 1.5P*9 | 1.5P*10 | 1.5P*12 | 1.5P*15 |
| 3 | 2.5 P | Φ9*Φ19mm | 2.5P*8 | 2.5P*9 | 2.5P*10 | 2.5P*12 | 2.5P*15 |
| 4 | 3 P | Φ12*Φ19mm | 3 P*8 | 3 P*9 | 3 P*10 | 3 P*12 | 3 P*15 |
| 5 | 4 P | Φ12*Φ22mm | 4 P*8 | 4 P*9 | 4 P*10 | 4 P*12 | 4 P*15 |
| 6 | 5 P | Φ15*Φ22mm | 5 P*8 | 5 P*9 | 5 P*10 | 5 P*12 | 5 P*15 |
FAQ:
Q1:How can I place an order?
1)Tell us the size details and quantity you want to order.
2)We will make PI for you.
3)Checking PI and confirm it for us, we will arrange the production
ASAP when the prepayment received.
4)We will take photos for you to confirm and then deliver the goods
soon after the balance.
5)Send the Customs Clearance Documents or tracking number to you
and track the goods for you until you get it.
Q2:.Why choose you?
Our Foam is in Sheet, Roll, and customed shape ,
The Thickness Single layer 0.15-15mm,
Max Width 1.6meter Can Be Cut By Customers’ Requirement.
Packaging Polybag Lead Time 3 Days For Sampling, 15 Days For
Production.
No MOQ For Stock, 3000 Meter For Customized Product.
Q3:Is polyethylene foam toxic?
Polyethylene is Safe and Non-Toxic
Blocking chemical off-gassing is not so simple.Low density,
food-grade polyethylene is safe and non-toxic. It has a simple
molecular structure that does not require toxic chemical additives
like phthalates and other unsafe plasticizers.
