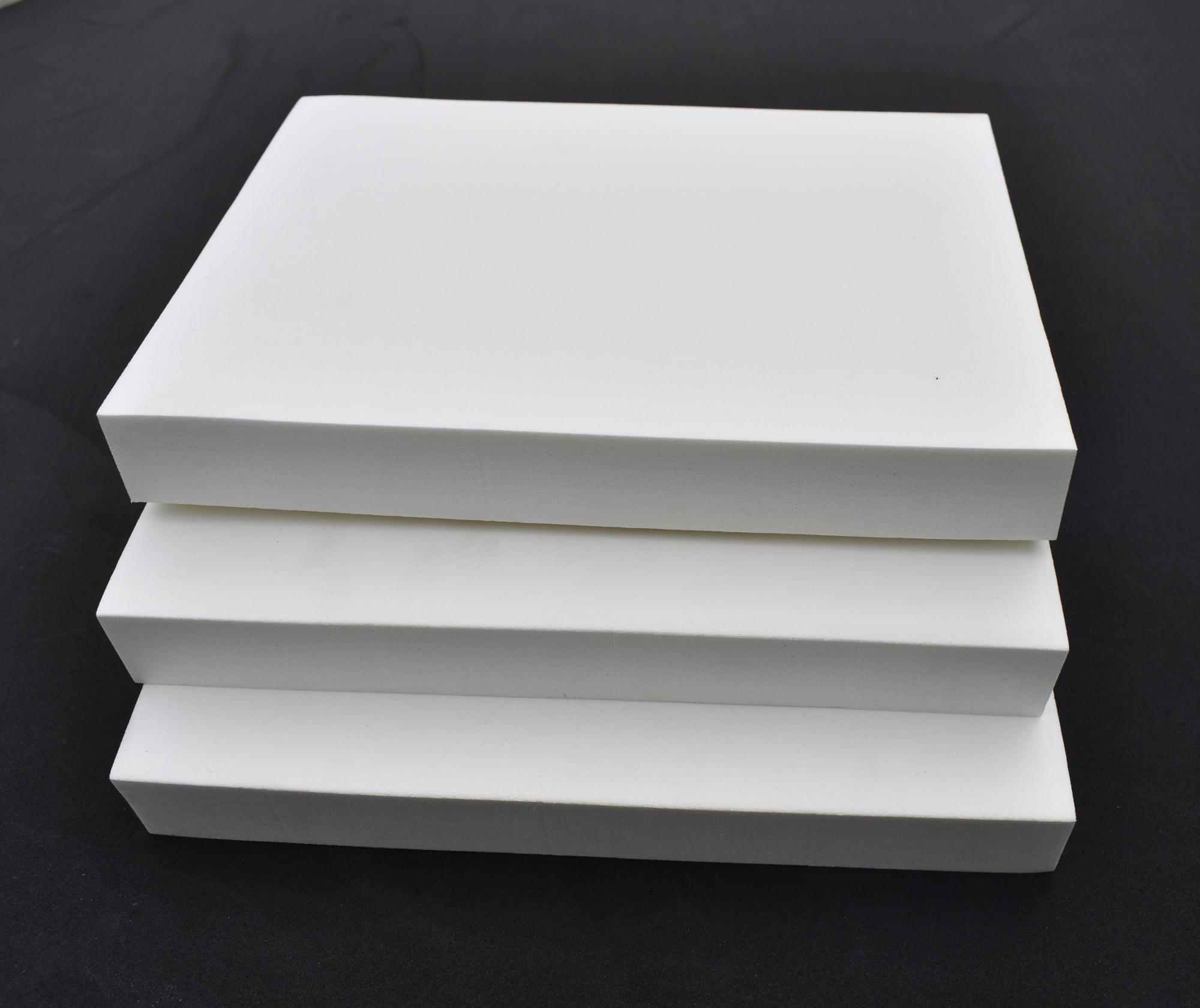

2mm 4mm 6mm 8mm 10mm Grade A EVA 38 Degree Foam Sheet And Blocks
For Building
EVA foam also known as Ethylene-Vinyl Acetate foam is a closed cell
material that usually comes in large sheets. EVA foam is UV
resistant and is often used for hot tub insulation, gym mats,
fishing rods, soccer cleats and even biomedical drug delivery
devices. EVA is also tear resistant and has fantastic shock
absorption properties
Specification:
Material | Hardness (Shore C) | Density (kg/m3) | Foam Rate | Water Absoprtion (%) |
EVA | 25±5 | 90±20 | 40 | ≤1 |
EVA | 35±5 | 110±20 | 35 | ≤1 |
EVA | 45±5 | 110±20 | 20 | ≤1 |
EVA | 55±5 | 110±20 | 20 | ≤1 |
EVA | 65±5 | 180±20 | 20 | ≤1 |
Parameters are for reference only and are customized according to
customer requirements.
Density
(kg/m³) | Hardness
(Shore A) |
27 | 11.3 |
31 | 12.9 |
36 | 15 |
43 | 18 |
54 | 22.5 |
72 | 30 |
108 | 45 |
120 | 50 |
127 | 52.9 |
135 | 56.3 |
144 | 60 |
154 | 64.3 |
168 | 69.2 |
180 | 75 |
192 | 80 |
Applications:
ESD EVA Tray PEF Foam
(Secondary Foaming Low Density EVA Foam)
FAQ:
Q1:What's the physical properties of EVA foam?
EVA foam is quite versatile when it comes to physical properties.
Its hardness levels can vary from 15 to 80 degrees on the Shore C
scale. Additionally, its density can range from as low as 33 kg/m³
to as high as 280 kg/m³.
Q2:What's the relationship between hardness and density of EVA foam?
EVA foam density is divided into three standards according to
hardness:
1)High foaming hardness is 5%-40%,
2)Secondary foaming hardness is 40%-55%
3) Primary foaming hardness is 55%-75%,
Currently 38-60 °,Most used in packaging linings
Q3:What are the applications of EVA foam?
EVA foam is used in a wide range of applications, including
footwear, sports equipment,
automotive interiors, toys, and more.
