Environmentally Friendly Supercritical Co2 PVDF Foam Odorless For
Tube Insulation

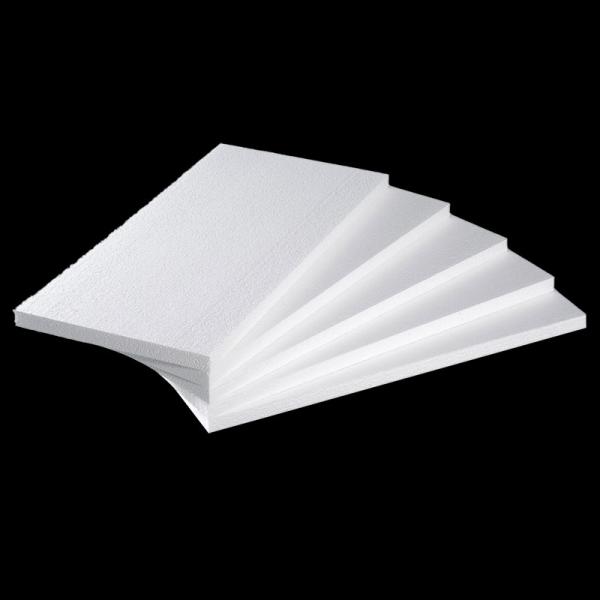

PVDF (poly vinylidene fluoride) foaming sheet has outstanding
resistance to a wide range of aggressive chemicals. It also offers
excellent toughness, wide temperature tolerance (-40 to 160℃), high
dielectric strength and excellent resistance to nuclear radiation,
UV and ageing.
Supercritical CO2 Foam Technology specializes in the development
and green manufacturing of clean and environmentally friendly high
performance lightweight polymer foams.We use N2 and CO2 gases
commonly found in the air to expand the plastic and form a large
number of micro and nano bubbles inside. This is a purely physical
foaming process with no chemical blowing agents added and no
chemical cross-linking during the foaming process. Compared with
traditional foaming materials, our material is recyclable,
non-toxic and environmentally friendly, and meets the needs of
sustainable development.
Specification:
| Test Item | Test method | Unit | PVDF05 |
| Density | ISO845:2006 | g/cm³ | 0.045-0.07 |
| Hardness | SATRA TM205-16 | shore C | 42 |
Tensile Strength
(MPa) | ISO1798:2008 | MPa | 0.84 |
Elongation at Break
(%) | ISO1798:2008 | % | 148 |
| Shrinkage | ASTM D1148 | % | 3(120℃) |
| compression rebound | ASTM D1148
(50% 22h) | % | 1.47(24h) |
Method A Tear Trouser Test
(N/cm) | ISO8067:2008 | N/cm | / |
Method B Tear AngleTest
(N/cm) | ISO8067:2008 | N/cm | 38.75 |
Ball Resilience
(%) | ASTM D3574 | % | 50.5 |
Application:
Clean pipe Medical neck colla
FAQ:
Q1:How can I place an order?
1)Tell us the size details and quantity you want to order.
2)We will make PI for you.
3)Checking PI and confirm it for us, we will arrange the production
ASAP when the prepayment received.
4)We will take photos for you to confirm and then deliver the goods
soon after the balance.
5)Send the Customs Clearance Documents or tracking number to you
and track the goods for you until you get it.
Q2:How many kinds of foam could you provide ?
We are your one stop foam products supplier. We can provide IXPE
foam, XLPE foam,,ESD foam,EVA foam,EPDM foam,NBR foam,CR foam,PU
foam,MPP foam,MTPU foam, PVDF foam and PE foam products(foam
camping mat,foam floating mat, foam wallpaper, car floor mat)
Q3:Do you accept customized foam products ?
We have customized production service, we can produce foam products
as per client’s requests.
Q4:How long you could prepare samples?
Normally 3days if we have the sample in hand. If customized one,
about a week around.
